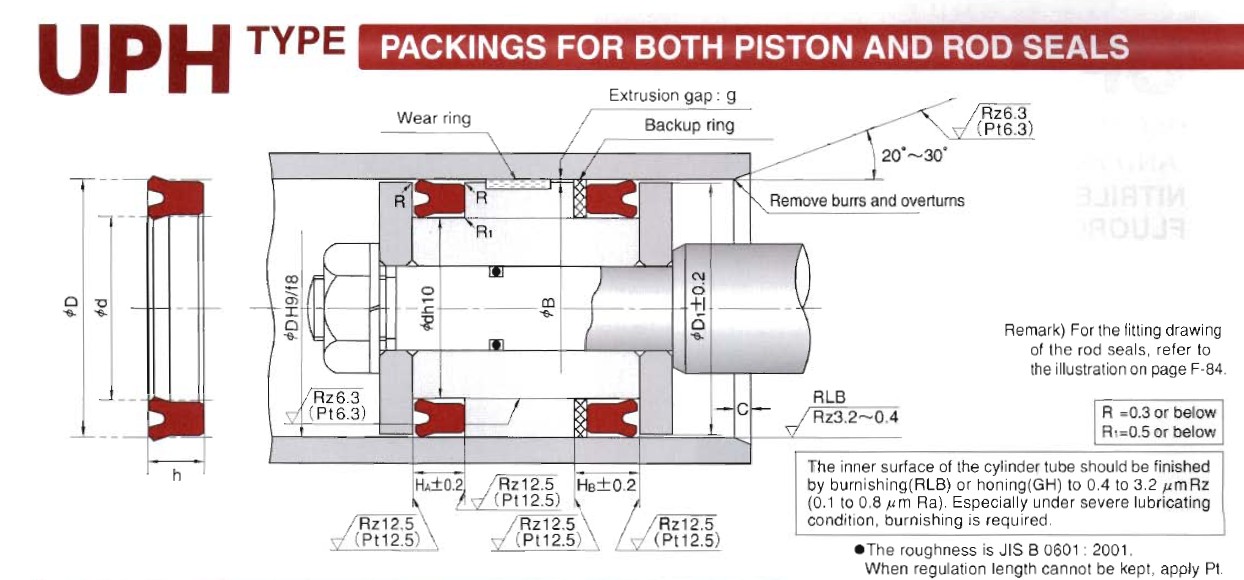

UPH型孔軸兩用密封
UPH型孔軸兩用密封材料包括邵爾90度丁氰橡膠NBR和邵爾90度氟橡膠FKM兩種，壓力可達到32MPA，邵爾90度丁氰橡膠材料適用溫度：-25度---+100度，氟橡膠材料適用于溫度：-10度---+150度，UPH型孔軸兩用密封具有較大的截面，可用于大范圍的操作。
| 密封件公稱尺寸 | 組裝部分尺寸 | 訂貨號 | |||||
| D | d | h | HA | HB | φD1 | C | |
| 6.3 | 16.3 | 7.5 | 8.5 | 10.5 | 15.3 | 2.5 | CU3308-D0 |
| 6.3 | 16.3 | 8 | 9 | 11 | 15.3 | CU0024-D0 | |
| 7.1 | 17.1 | 7.5 | 8.5 | 10.5 | 16.1 | CU3309-D0 | |
| 7.1 | 17.1 | 8 | 9 | 11 | 16.1 | CU0030-D0 | |
| 8 | 18 | 7.5 | 8.5 | 10.5 | 17 | CU0042-D0 | |
| 8 | 18 | 8 | 9 | 11 | 17 | CU0043-D1 | |
| 9 | 19 | 7.5 | 8.5 | 10.5 | 18 | CU3310-D0 | |
| 9 | 19 | 8 | 9 | 11 | 18 | CU0054-D0 | |
| 10 | 20 | 7.5 | 8.5 | 10.5 | 19 | CU0068-D0 | |
| 10 | 20 | 8 | 9 | 11 | 19 | CU0069-D1 | |
| 11.2 | 21.2 | 7.5 | 8.5 | 10.5 | 20.2 | CU3311-D0 | |
| 11.2 | 21.2 | 8 | 9 | 11 | 20.2 | CU0081-D0 | |
| 12 | 25 | 8 | 9 | 11 | 24 | CU0093-D0 | |
| 12.5 | 22.5 | 7.5 | 8.5 | 10.5 | 21.5 | CU3312-D0 | |
| 12.5 | 22.5 | 8 | 9 | 11 | 21.5 | CU0102-D0 | |
| 14 | 24 | 7.5 | 8.5 | 10.5 | 23 | CU0121-D0 | |
| 14 | 24 | 8 | 9 | 11 | 23 | CU0122-D0 | |
| 15 | 25 | 8 | 9 | 11 | 24 | CU0135-D0 | |
| 15 | 28 | 10 | 11 | 13 | 27 | CU0137-D0 | |
| 16 | 26 | 7.5 | 8.5 | 10.5 | 25 | CU0156-D0 | |
| 16 | 26 | 8 | 9 | 11 | 25 | CU0157-D1 | |
| 16 | 32 | 10 | 11 | 13 | 31 | CU0161-D0 | |
| 18 | 28 | 8 | 9 | 11 | 27 | CU0182-D0 | |
| 18 | 31 | 10 | 11 | 13 | 30 | 3.5 | CU0186-D0 |
| 18 | 33 | 10 | 11 | 13 | 32 | CU2196-D0 | |
| 18.5 | 31.5 | 10 | 11 | 13 | 30.5 | CU3313-D0 | |
| 20 | 30 | 8 | 9 | 11 | 29 | CU0215-D1 | |
| 20 | 33 | 10 | 11 | 13 | 32 | CU0221-D0 | |
| 20 | 35 | 10 | 11 | 13 | 34 | CU0224-D0 | |
| 21.5 | 31.5 | 8 | 9 | 11 | 30.5 | CU0239-D0 | |
| 22 | 35 | 10 | 11 | 13 | 34 | CU0249-D0 | |
| 22.4 | 32.4 | 8 | 9 | 11 | 31.4 | CU0263-D0 | |
| 22.4 | 35.4 | 10 | 11 | 13 | 34.4 | CU0265-D1 | |
| 25 | 35 | 8 | 9 | 11 | 34 | CU0282-D2 | |
| 25 | 38 | 10 | 11 | 13 | 37 | CU0288-D0 | |
| 25 | 40 | 10 | 11 | 13 | 39 | CU0292-D0 | |
| 25 | 45 | 12 | 13 | 15 | 44 | CU0301-D0 | |
| 25.5 | 35.5 | 8 | 9 | 12 | 34.5 | CU0309-D0 | |
| 27 | 40 | 10 | 11 | 14 | 39 | CU2347-D0 | |
| 28 | 40 | 10 | 11 | 14 | 39 | CU0330-D2 | |
| 28 | 41 | 10 | 11 | 14 | 40 | CU0335-D0 | |
| 28 | 43 | 10 | 11 | 14 | 42 | CU0340-D0 | |
| 30 | 43 | 10 | 11 | 14 | 42 | 3.5 | CU0364-D0 |
| 30 | 45 | 10 | 11 | 14 | 44 | CU0368-D2 | |
| 31.5 | 44.5 | 10 | 11 | 14 | 43.5 | CU0385-D0 | |
| 31.5 | 46.5 | 10 | 11 | 14 | 45.5 | CU0387-D1 | |
| 32 | 45 | 10 | 11 | 14 | 44 | CU2451-D0 | |
| 32 | 46 | 10 | 11 | 14 | 45 | CU0403-D0 | |
| 32 | 48 | 10 | 11 | 14 | 47 | CU0404-D0 | |
| 34 | 50 | 12 | 13 | 16 | 49 | CU0408-D0 | |
| 35 | 50 | 10 | 11 | 14 | 49 | 5 | CU0437-D4 |
| 35 | 50 | 12 | 13 | 16 | 49 | CU0438-D0 | |
| 35 | 51 | 12 | 13 | 16 | 50 | CU0441-D0 | |
| 35.5 | 50.5 | 10 | 11 | 14 | 49.5 | CU0456-D2 | |
| 35.5 | 51.5 | 12 | 13 | 16 | 50.5 | CU0458-D0 | |
| 38 | 52 | 10 | 11 | 14 | 51 | CU0470-D1 | |
| 40 | 55 | 10 | 11 | 14 | 54 | CU0505-D3 | |
| 40 | 56 | 10 | 11 | 14 | 55 | CU0508-D0 | |
| 40 | 56 | 12 | 13 | 16 | 55 | CU0509-D0 | |
| 40 | 60 | 12 | 13 | 16 | 59 | CU0514-D0 | |
| 41 | 56 | 10 | 11 | 14 | 55 | CU0523-D0 | |
| 45 | 60 | 10 | 11 | 14 | 59 | CU0577-D5 | |
| 45 | 60 | 12 | 13 | 16 | 59 | CU0578-D0 | |
| 45 | 61 | 12 | 13 | 16 | 60 | CU0580-D0 | |
| 47 | 63 | 12 | 13 | 16 | 62 | CU0591-D0 | |
| 48 | 63 | 10 | 11 | 14 | 62 | CU0601-D1 | |
| 50 | 65 | 10 | 11 | 14 | 64 | CU0631-D2 | |
| 50 | 66 | 12 | 13 | 16 | 65 | CU0635-D0 | |
| 50 | 70 | 12 | 13 | 16 | 69 | CU0639-D3 | |
| 51 | 71 | 12 | 13 | 16 | 70 | CU0669-D0 | |
| 53 | 69 | 12 | 13 | 16 | 68 | CU3317-D0 | |
| 53 | 73 | 12 | 13 | 16 | 72 | CU0683-D0 | |
| 55 | 71 | 12 | 13 | 16 | 70 | CU0704-D1 | |
| 55 | 75 | 12 | 13 | 16 | 74 | CU0708-D2 | |
| 55 | 80 | 15 | 16 | 19 | 79 | CU0712-D0 | |
| 56 | 72 | 12 | 13 | 16 | 71 | CU0727-D0 | |
| 56 | 76 | 12 | 13 | 16 | 75 | CU0728-D1 | |
| 60 | 76 | 12 | 13 | 16 | 75 | CU0757-D1 | |
| 60 | 80 | 12 | 13 | 16 | 79 | CU0761-D1 | |
| 63 | 79 | 12 | 13 | 16 | 78 | CU0791-D0 | |
| 63 | 83 | 12 | 13 | 16 | 82 | CU0793-D1 | |
| 64 | 80 | 12 | 13 | 16 | 79 | CU2123-D1 | |
| 65 | 81 | 12 | 13 | 16 | 80 | CU3318-D0 | |
| 65 | 85 | 12 | 13 | 16 | 84 | CU0819-D1 | |
| 67 | 87 | 12 | 13 | 16 | 86 | 5 | CU0831-D0 |
| 67 | 87 | 15 | 16 | 19 | 86 | CU3319-D0 | |
| 70 | 90 | 12 | 13 | 16 | 89 | CU0862-D1 | |
| 70 | 90 | 15 | 16 | 19 | 89 | CU0864-D0 | |
| 71 | 91 | 12 | 13 | 16 | 90 | CU0884-D1 | |
| 71 | 91 | 15 | 16 | 19 | 90 | CU0885-D0 | |
| 75 | 95 | 12 | 13 | 16 | 94 | CU0910-D1 | |
| 75 | 95 | 15 | 16 | 19 | 94 | CU0911-D1 | |
| 80 | 100 | 12 | 13 | 16 | 99 | CU0948-D1 | |
| 80 | 100 | 15 | 16 | 19 | 99 | CU0949-D2 | |
| 85 | 105 | 12 | 13 | 16 | 104 | CU0989-D1 | |
| 85 | 105 | 15 | 16 | 19 | 104 | CU0990-D0 | |
| 90 | 110 | 12 | 13 | 16 | 109 | CU1030-D3 | |
| 90 | 110 | 15 | 16 | 19 | 109 | CU1031-D0 | |
| 92 | 112 | 12 | 13 | 16 | 111 | CU1042-D1 | |
| 92 | 112 | 15 | 16 | 19 | 111 | CU2132-D1 | |
| 95 | 115 | 12 | 13 | 16 | 114 | CU1056-D0 | |
| 95 | 115 | 15 | 16 | 19 | 114 | CU1057-D1 | |
| 95 | 120 | 15 | 16 | 19 | 118 | CU1061-D0 | |
| 100 | 120 | 12 | 13 | 16 | 118 | CU1089-D3 | |
| 100 | 120 | 15 | 16 | 19 | 118 | CU1091-D0 | |
| 100 | 125 | 15 | 16 | 19 | 123 | CU1096-D0 | |
| 105 | 125 | 15 | 16 | 19 | 123 | CU1129-D2 | |
| 106 | 126 | 15 | 16 | 19 | 124 | CU1138-D0 | |
| 110 | 130 | 15 | 16 | 19 | 128 | CU1165-D1 | |
| 112 | 132 | 15 | 16 | 19 | 130 | CU1182-D0 | |
| 115 | 135 | 15 | 16 | 19 | 133 | CU1198-D0 | |
| 118 | 138 | 15 | 16 | 19 | 136 | CU1207-D0 | |
| 120 | 140 | 15 | 16 | 19 | 138 | CU1224-D2 | |
| 125 | 145 | 15 | 16 | 19 | 143 | 6.5 | CU1257-D0 |
| 125 | 150 | 19 | 20 | 23 | 148 | CU1933-D0 | |
| 130 | 150 | 15 | 16 | 19 | 148 | CU1284-D2 | |
| 130 | 155 | 19 | 20 | 23 | 153 | CU3320-D0 | |
| 132 | 152 | 15 | 16 | 19 | 150 | CU1292-D0 | |
| 132 | 157 | 19 | 20 | 23 | 155 | CU2703-D1 | |
| 135 | 155 | 15 | 16 | 19 | 153 | CU1305-D0 | |
| 135 | 160 | 15.7 | 17 | 20 | 158 | CU3322-D0 | |
| 135 | 160 | 19 | 20 | 23 | 158 | CU1960-D0 | |
| 140 | 160 | 15 | 16 | 19 | 158 | CU1327-D1 | |
| 140 | 165 | 19 | 20 | 23 | 163 | CU1332-D2 | |
| 145 | 165 | 15 | 16 | 19 | 163 | CU1344-D0 | |
| 145 | 170 | 19 | 20 | 23 | 168 | CU2348-D0 | |
| 150 | 170 | 15 | 16 | 19 | 168 | 6.5 | CU1363-D2 |
| 150 | 175 | 19 | 20 | 23 | 173 | CU1367-D0 | |
| 155 | 180 | 15 | 16 | 20 | 178 | CU1391-D2 | |
| 155 | 180 | 15.7 | 17 | 21 | 178 | CU3323-D0 | |
| 155 | 180 | 19 | 20 | 24 | 178 | CU1393-D0 | |
| 160 | 185 | 15 | 16 | 20 | 183 | CU1413-D0 | |
| 160 | 185 | 19 | 20 | 24 | 183 | CU2349-D0 | |
| 165 | 190 | 15 | 16 | 20 | 188 | CU1431-D0 | |
| 165 | 190 | 19 | 20 | 24 | 188 | CU3324-D0 | |
| 170 | 195 | 15 | 16 | 20 | 193 | CU1448-D1 | |
| 170 | 195 | 19 | 20 | 24 | 193 | CU3325-D0 | |
| 175 | 200 | 15 | 16 | 20 | 198 | CU1461-D2 | |
| 175 | 200 | 15.7 | 17 | 21 | 198 | CU3326-D0 | |
| 175 | 200 | 19 | 20 | 24 | 198 | CU1463-D1 | |
| 180 | 205 | 15 | 16 | 20 | 203 | CU1490-D0 | |
| 180 | 205 | 19 | 20 | 24 | 203 | CU1492-D0 | |
| 185 | 210 | 15 | 16 | 20 | 208 | CU1504-D0 | |
| 190 | 215 | 15 | 16 | 20 | 213 | CU1519-D0 | |
| 190 | 215 | 19 | 20 | 24 | 213 | CU3327-D0 | |
| 199 | 224 | 15 | 16 | 20 | 222 | CU1532-D0 | |
| 199 | 224 | 15.7 | 17 | 21 | 222 | CU3329-D0 | |
| 199 | 224 | 19 | 20 | 24 | 222 | CU1535-D0 | |
| 200 | 225 | 15 | 16 | 20 | 223 | CU1547-D0 | |
| 200 | 225 | 19 | 20 | 24 | 223 | CU2350-D0 | |
| 210 | 235 | 18 | 19 | 23 | 233 | CU1579-D0 | |
| 212 | 237 | 19 | 20 | 24 | 235 | CU1585-D0 | |
| 215 | 240 | 19 | 20 | 24 | 238 | CU3331-D0 | |
| 224 | 249 | 19 | 20 | 24 | 247 | CU2926-D0 | |
| 225 | 250 | 18 | 19 | 23 | 248 | CU1625-D0 | |
| 225 | 250 | 19 | 20 | 24 | 278 | CU1626-D0 | |
| 236 | 261 | 19 | 20 | 24 | 259 | CU1649-D0 | |
| 250 | 275 | 19 | 20 | 24 | 273 | CU1683-D1 | |
| 255 | 280 | 19 | 20 | 24 | 278 | 8 | CU1694-D0 |
| 265 | 297 | 24 | 26 | 30 | 295 | CU1714-D0 | |
| 270 | 300 | 18 | 19 | 23 | 298 | CU1722-D0 | |
| 270 | 300 | 24 | 26 | 30 | 298 | CU1725-D0 | |
| 280 | 310 | 22 | 24 | 28 | 308 | CU2774-D0 | |
| 280 | 312 | 24 | 26 | 30 | 310 | CU2166-D0 | |
| 283 | 315 | 24 | 26 | 30 | 313 | CU1918-D0 | |
| 290 | 320 | 18 | 19 | 23 | 318 | CU1750-D0 | |
| 290 | 320 | 22 | 24 | 28 | 318 | CU1752-D0 | |
| 300 | 332 | 24 | 26 | 30 | 330 | CU2351-D0 | |
| 310 | 340 | 18 | 19 | 23 | 338 | 10 | CU1772-D0 |
| 310 | 340 | 22 | 24 | 28 | 338 | CU1773-D0 | |
| 315 | 347 | 24 | 26 | 30 | 345 | CU3064-D0 | |
| 320 | 340 | 12 | 13 | 17 | 338 | CU2101-D0 | |
| 320 | 350 | 22 | 24 | 28 | 348 | CU1780-D0 | |
| 323 | 355 | 24 | 26 | 30 | 353 | CU1784-D0 | |
| 330 | 355 | 16 | 17 | 21 | 353 | CU1786-D0 | |
| 330 | 356 | 20 | 22 | 26 | 354 | CU1787-D0 | |
| 330 | 360 | 22 | 24 | 28 | 358 | CU1789-D0 | |
| 335 | 355 | 14 | 15 | 19 | 353 | CU1793-D1 | |
| 335 | 367 | 24 | 26 | 30 | 365 | CU2197-D0 | |
| 340 | 370 | 22 | 24 | 28 | 368 | CU1795-D0 | |
| 345 | 365 | 14 | 15 | 19 | 363 | CU2243-D0 | |
| 348 | 380 | 24 | 26 | 30 | 378 | CU2087-D1 | |
| 350 | 370 | 14 | 15 | 19 | 368 | CU2302-D0 | |
| 350 | 380 | 22 | 24 | 28 | 378 | CU1799-D2 | |
| 355 | 385 | 22 | 24 | 28 | 383 | CU1801-D0 | |
| 355 | 387 | 24 | 26 | 30 | 385 | CU1916-D0 | |
| 360 | 390 | 22 | 24 | 28 | 388 | CU1803-D0 | |
| 365 | 395 | 22 | 24 | 28 | 393 | CU1805-D0 | |
| 368 | 400 | 24 | 26 | 30 | 398 | CU1807-D0 | |
| 370 | 400 | 23 | 25 | 29 | 398 | CU1810-D0 | |
| 370 | 400 | 25 | 27 | 31 | 398 | CU1811-D0 | |
| 371 | 396 | 16 | 17 | 21 | 394 | CU2303-D0 | |
| 375 | 407 | 24 | 26 | 30 | 405 | CU3357-D0 | |
| 380 | 400 | 15 | 16 | 20 | 398 | CU1813-D0 | |
| 380 | 410 | 15 | 16 | 20 | 408 | CU1815-D0 | |
| 380 | 420 | 30 | 32 | 36 | 418 | CU2162-D0 | |
| 390 | 420 | 22 | 24 | 28 | 418 | CU1818-D0 | |
| 395 | 425 | 22 | 24 | 28 | 423 | CU1819-D0 | |
| 400 | 430 | 22 | 24 | 28 | 428 | CU1823-D0 | |
| 400 | 430 | 25 | 27 | 31 | 428 | CU2007-D0 | |
| 400 | 432 | 24 | 26 | 30 | 430 | CU3358-D0 | |
| 420 | 455 | 25 | 27 | 32 | 453 | 10 | CU1833-D0 |
| 425 | 457 | 24 | 26 | 31 | 455 | CU1917-D0 | |
| 430 | 470 | 20 | 22 | 27 | 468 | CU1837-D0 | |
| 435 | 470 | 25 | 27 | 32 | 468 | CU1841-D0 | |
| 440 | 480 | 35 | 37 | 42 | 478 | CU1843-D0 | |
| 445 | 470 | 18 | 19 | 24 | 468 | CU2244-D0 | |
| 450 | 480 | 22 | 24 | 29 | 478 | CU1844-D0 | |
| 450 | 482 | 24 | 26 | 31 | 480 | CU3359-D0 | |
| 460 | 500 | 20 | 22 | 27 | 498 | CU1850-D0 | |
| 475 | 507 | 24 | 26 | 31 | 505 | CU1853-D0 | |
| 480 | 505 | 18 | 19 | 24 | 503 | CU2245-D0 | |
| 490 | 530 | 25 | 27 | 32 | 528 | CU1855-D0 | |
| 520 | 550 | 17 | 18 | 23 | 548 | CU2189-D0 | |
| 525 | 555 | 15 | 16 | 21 | 553 | CU1860-D0 | |
| 530 | 570 | 20 | 22 | 27 | 568 | CU2084-D0 | |
| 540 | 560 | 14 | 15 | 20 | 558 | CU2037-D0 | |
| 570 | 600 | 17 | 18 | 23 | 598 | CU2190-D0 | |
| 600 | 630 | 20 | 22 | 27 | 628 | CU2160-D0 | |
| 600 | 630 | 28 | 30 | 35 | 628 | CU2036-D0 | |
| 600 | 640 | 30 | 32 | 37 | 638 | CU1868-D0 | |
| 640 | 685 | 25 | 27 | 32 | 683 | 12 | CU2284-D0 |
| 700 | 730 | 15 | 16 | 21 | 728 | CU1873-D0 | |
| 760 | 800 | 34 | 36 | 41 | 798 | CU1877-D0 | |
| 768 | 800 | 30 | 32 | 37 | 798 | CU1878-D0 | |
| 818 | 850 | 24 | 26 | 31 | 848 | CU1882-D1 | |
| 825 | 850 | 16 | 16.5 | 21.5 | 848 | CU1883-D0 | |
| 825 | 860 | 27 | 29 | 34 | 858 | CU2124-D0 | |
| 925 | 950 | 14 | 15 | 20 | 948 | CU2325-D0 | |
| 950 | 980 | 20 | 22 | 27 | 978 | CU1892-D0 | |
| 1020 | 1050 | 18 | 19 | 24 | 1048 | CU1894-D0 | |
| 1025 | 1055 | 15 | 16 | 21 | 1053 | CU1895-D0 | |
| 1100 | 1140 | 20 | 22 | 27 | 1138 | CU2192-D0 | |
| 1220 | 1280 | 30 | 32 | 37 | 1278 | CU1899-D0 | |
| 1560 | 1600 | 20 | 22 | 27 | 1598 | CU2191-D0 | |
| 1620 | 1680 | 30 | 32 | 37 | 1678 | CU1904-D0 | |
